Project details
The database
The database has been designed from scratch (in respect of the previous version).
The choice for the dbms was MySql
The data model
The new logical model has still the Patient as the central entity but now a many to many relationship with a distinct Customer entity exists.

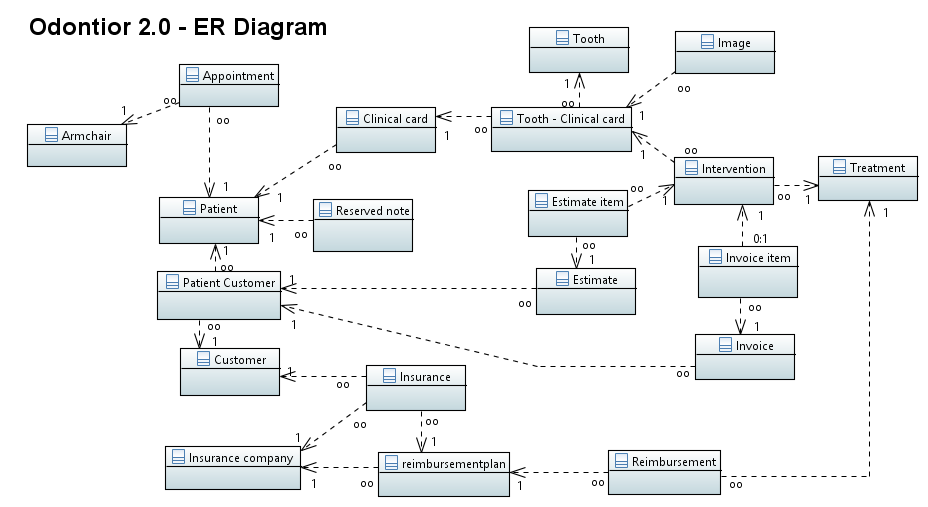

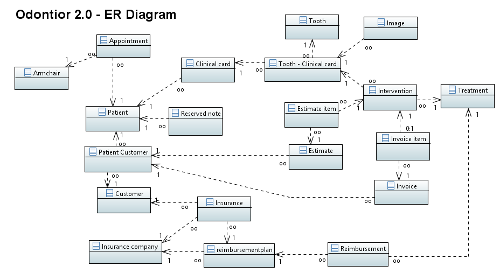

The complete ER diagram is in the next image.
From the model appears that an invoice (and an estimate) is to be relative to the health care made on a single patient; another way to say is that, even if the customer can be responsible for more patients, an invoice is emitted on single patient basis.
At the Clinical card level the selection context is represented in the model as a many to many relationship between the Clinical card entity and the tooth entity. The selection context is indeed the basis for the definition of the interventions and for collecting related images.
The insurance management is bound to the help that the system can provide when an estimate is to be built. Each customer can have one or more insurance coverage instances. Each of them can be represented by one or more of the three types of coverage contributions available (Deductible/Maximum, Coinsurance provision, Reimbursement plan), and, only for information tracking, the validity period is held by the system. In the case of Reimbursement plan contribution one of the available plans provided by the insurance company must be specified. In the editing of an estimate for the customer one of the insurance coverage instances owned by him/her must be specified, and the system will compute the amount, keeping in account the various involved quantities. In particular if the coverage instance chosen has the reimbursement plan contribution specified, the system, what that is not shown by the model, will diminished each price of intervention by the percentage specified in the plan on the basis of the treatment which the intervention is related to.
The Java project and the use of the Joty 2.0 framework
As project built on the top of Joty 2.0, Odontior 2.0 is a Joty Workstation application and , as such, is a Java project.
The source code is organized in three packages:
- org.odontior, the main package: it contains the whole set of classes implementing the application except two classes
- org.odontior.accessor, as effect of the choice of the Accessor mode asset, as the most secure stage reached by the Joty framework, about data name-space obscuration, this package contains exactly one class: the Accessor implementation for the Odontior 2.0 application, that is a class containing all the sql statements and database table names of the application that will not reach, in any way, the client binary object (when the application run in web mode).
- org.odontior.common, a container for the application implementation of what is considered to be runnable on both sides of the Joty technology, without worrying about the deployment when a switch of the running mode (web to non web or vice-versa) is performed. Actually it contains one class only dedicated to the interpretation of the dbms responses.
